IC ชิปขยายเสียง แอมป์จิ๋ว ชิ้นส่วนอะไหล่ tpa3116 tda7498e tpa3255 tpa3221

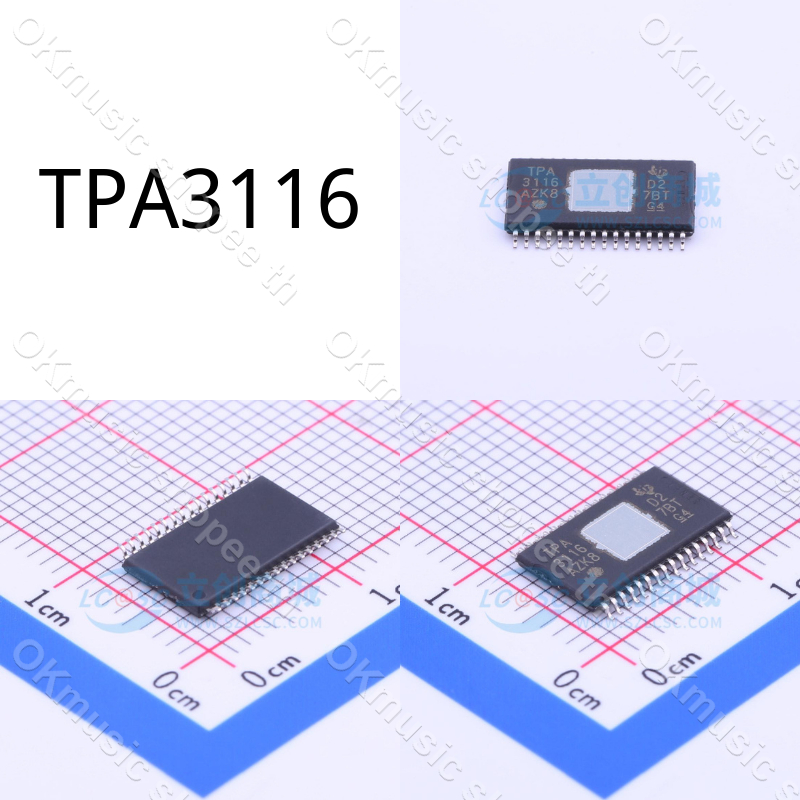

TPA3116

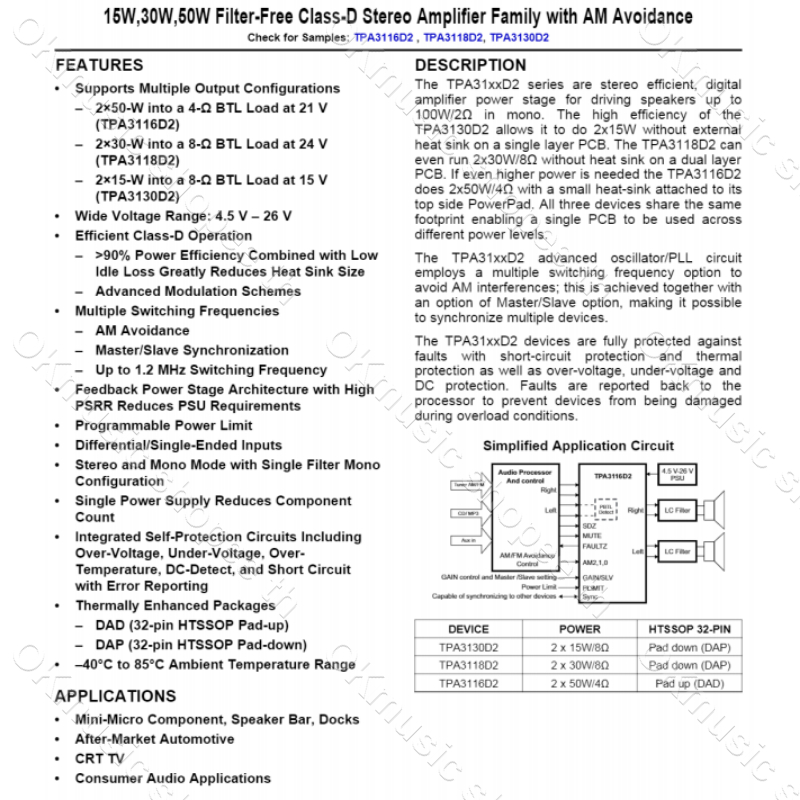

15W,30W,50W Filter-Free Class-D Stereo Amplifier Family with AM Avoidance

DESCRIPTION

The TPA31xxD2 series are stereo efficient, digital amplifier power stage for driving speakers up to 100W/20 in mono. The high efficiency of the TPA3130D2 allows it to do 2x15W without external heat sink on a single layer PCB. The TPA3118D2 can even run 2x30W/80 without heat sink on a dual layer PCB. If even higher power is needed the TPA3116D2 does 2x50W/40 with a small heat-sink attached to its top side PowerPad. All three devices share the same footprint enabling a single PCB to be used across different power levels.

The TPA31xxD2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences; this is achieved together with an option of Master/Slave option, making it possible to synchronize multiple devices.

The TPA31xxD2 devices are fully protected against faults with short-circuit protection and thermal protection as well as over-voltage, under-voltage and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.

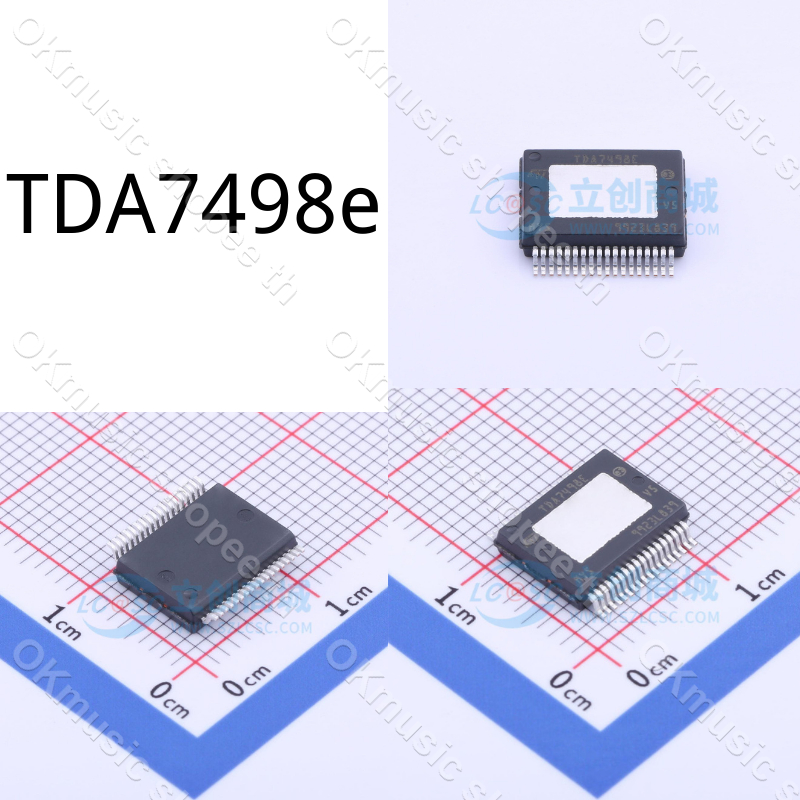

TDA7498E

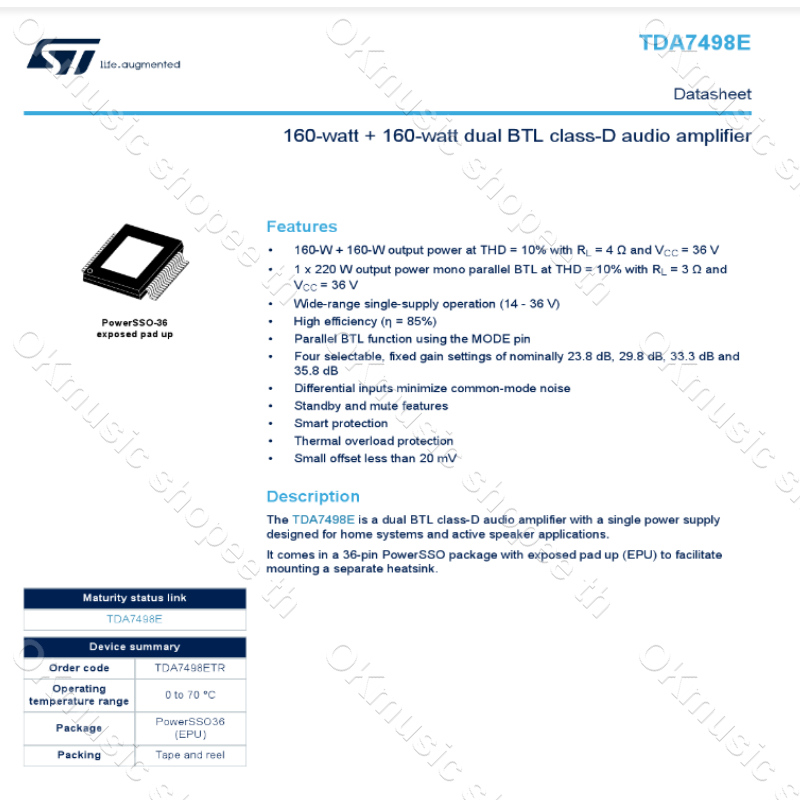

160-watt + 160-watt dual BTL class-D audio amplifier

Features

160-W 160-W output power at THD 10% with R₁ = 4 £2 and Vcc = 36 V

1 x 220 W output power mono parallel BTL at THD 10% with R = 312 and Vcc = 36 V

Wide-range single-supply operation (14-36 V)

High efficiency (n=85%)

Parallel BTL function using the MODE pin

Four selectable, fixed gain settings of nominally 23.8 dB, 29.8 dB, 33.3 dB and 35.8 dB

Differential inputs minimize common-mode noise

Standby and mute features

Smart protection

Thermal overload protection

Small offset less than 20 mV

Description

The TDA7498E is a dual BTL class-D audio. amplifier with a single power supply designed for home systems and active speaker applications.

It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to fa
